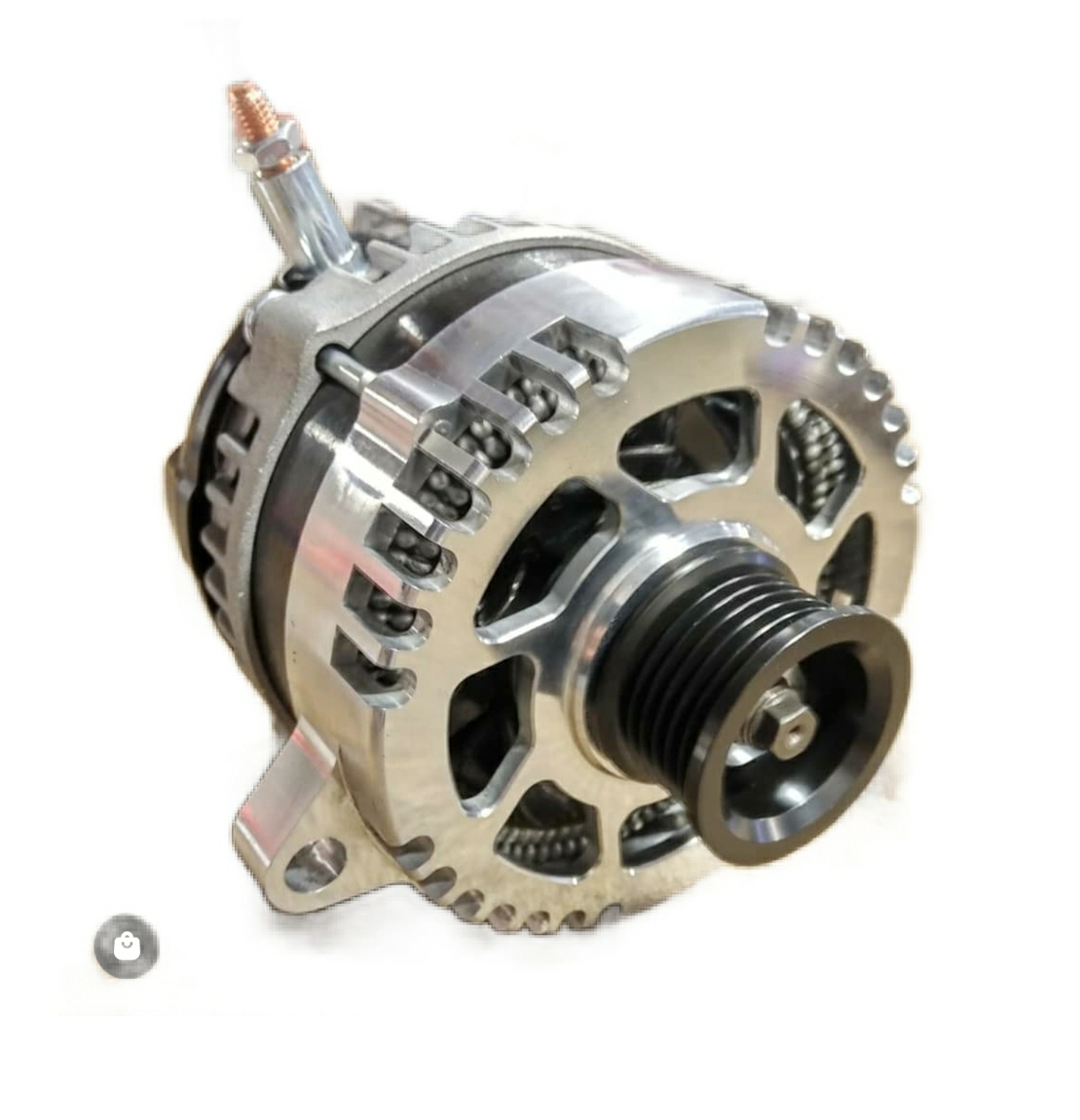

Serpentine System High Output Alternators
We offer Multiple mounting options for:
ALL AMERICAN BILLET
CVF
HOLLY
MARCH PERFORMANCE
VINTAGE AIR
AND MANY MORE GENERIC BRACKETS
**NOTE: PLEASE VERIFY YOUR BRACKET MEASUREMENT
AND MOUNT BEFORE ORDERING ONLINE OR PROVIDE
US WITH THE ALTERNATOR PART NUMBER. UNITS ORDERED
INCORRECTLY AND RETURNED RESULT IN A RESTOCKING FEE**
HP-B7861-3-180Amp
180 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Left Ear Location"
- 110-120 Amps at 650rpm
- 185amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$345.00
HP-B7127-3-180Amp-6G
180 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.6 Inch (167mm) Mounting
- 110-120 Amps at 650rpm
- 185amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$345.00
HP-B7861-3-240Amp
240 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Left Ear Location"
- 130-140 Amps at 650rpm
- 250amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$375.00
HP-B7127-3-240Amp-6G
240 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.6 Inch (167mm) Mounting
- 130-140 Amps at 650rpm
- 250amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$375.00
HP-B7861-3-320Amp
320 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Left Ear Location"
- 170-180 Amps at 650rpm
- 320amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$395.00
HP-B7127-3-320Amp-6G
180 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.6 Inch (167mm) Mounting
- 170-180 Amps at 650rpm
- 320amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$395.00
HP-B7860-3-180Amp
180 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Right Ear Location"
- 110-120 Amps at 650rpm
- 185amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$345.00
HP-B7801-3-180Amp-6G
180 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.25 Inch (159mm) Mounting
- 110-120 Amps at 650rpm
- 185amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over
- 30 Different Colors when ordering ($25.00 additional)
$345.00
HP-B7860-3-240Amp
240 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Right Ear Location"
- 130-140 Amps at 650rpm
- 250amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$375.00
HP-B7801-3-240Amp-6G
240 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.25 Inch (159mm) Mounting
- 130-140 Amps at 650rpm
- 250amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over
- 30 Different Colors when ordering ($25.00 additional)
$375.00
HP-B7860-3-320Amp
320 Amp Billet Case High Output Alternator Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- "Right Ear Location"
- 170-180 Amps at 650rpm
- 320amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over 30 Different Colors when ordering ($25.00 additional)
$395.00
HP-B7801-3-320Amp-6G
180 Amp Billet Case High Output Alternator
Supplied with 6g Pulley
- (Plug and post position at 3 o clock)
- 6.25 Inch (159mm) Mounting
- 170-180 Amps at 650rpm
- 320amp at 1800rpm
- 14.8v Setpoint Unit
- Supplied in Natural Finish. We offer over
- 30 Different Colors when ordering ($25.00 additional)
$395.00
Proof in Performance (Ours versus Theirs)
Every High Output Alternator is Custom Built meet your Power Needs.
Please give us a call Monday thru Friday and we can Custom Build an alternator
that will fit the Serpentine System that you are using
and recommend the proper amperage needed.
